BC LITHIUM 7000 - MAIN FEATURES: strong> p>
Code Product for Dealer 700BCL7000 By partnering with leading manufacturers Cars, our products are tested and approved for use on all makes of cars in circulation (Abarth, Acura, Alfa Romeo, Audi, Bentley, BMW, Bugatti, Buick, Cadillac, Chevrolet, Chrysler, Citroen, Dacia, Daihatsu, Dodge, Ferrari, Fiat, Ford, Honda, Hyundai, Infiniti, Jaguar, Jeep, Kia, Lada, Lamborghini, Lancia, Land Rover, Lexus, Lotus, Maserati, Mazda , Mercedes-Benz, Mini, Mitsubishi, Nissan, Opel, Peugeot, Pontiac, Porsche, Proton, Renault, Rolls-Royce, Saab, Seat, Skoda Auto, Smart, Subaru, Suzuki, Tata, Toyota, Volkswagen, Volvo). < / strong> Come with a harness with eyelets that we recommend to permanently install the battery so as to make the operation of the product access to the convenient and fast battery. Strong> p>
From elegant and compact design, with a very robust shell which prevents slippage and makes it resistant to scratches, spills, to the accidental crushing, UV rays and water (IP44) the product proves to be perfect to be used in any circumstance and occasion. BC LITHIUM 7000 - WHAT BENEFITS strong> p>
Our products if left connected continuously or at least if you perform maintenance on a monthly basis of the battery (full charge), are able to increase up to 4 times the battery life. On average, a battery has an expected life of 2 years, with battery charger and maintainer BC Battery Controller you can get to have batteries that have a focal point and a service life of up to 8 to 10 years. No fee will be e-compatibility problem with no brand and model of machine. P>
THE BOX LITHIUM 7000 BC - DETAILED SPECIFICATIONS strong> LITHIUM From elegant and compact design, with a very robust shell which prevents slippage and makes it resistant to scratches, spills, to the accidental crushing, UV rays and water (IP44) the product proves to be perfect to be used in any circumstance and occasion. Technical Specifications: strong> p>
strong> p>
strong> li>
addition, the current market trend is to replace vehicles with diesel or gasoline power with new more environmentally friendly power supplies (hybrid vehicles). Our chargers and maintainers are fully compatible with both traditionally fueled vehicles (Diesel, Gasoline, Natural Gas, LPG) or with mixed feeding (hybrid vehicles, eg. Petrol and electric) strong> p>
p>

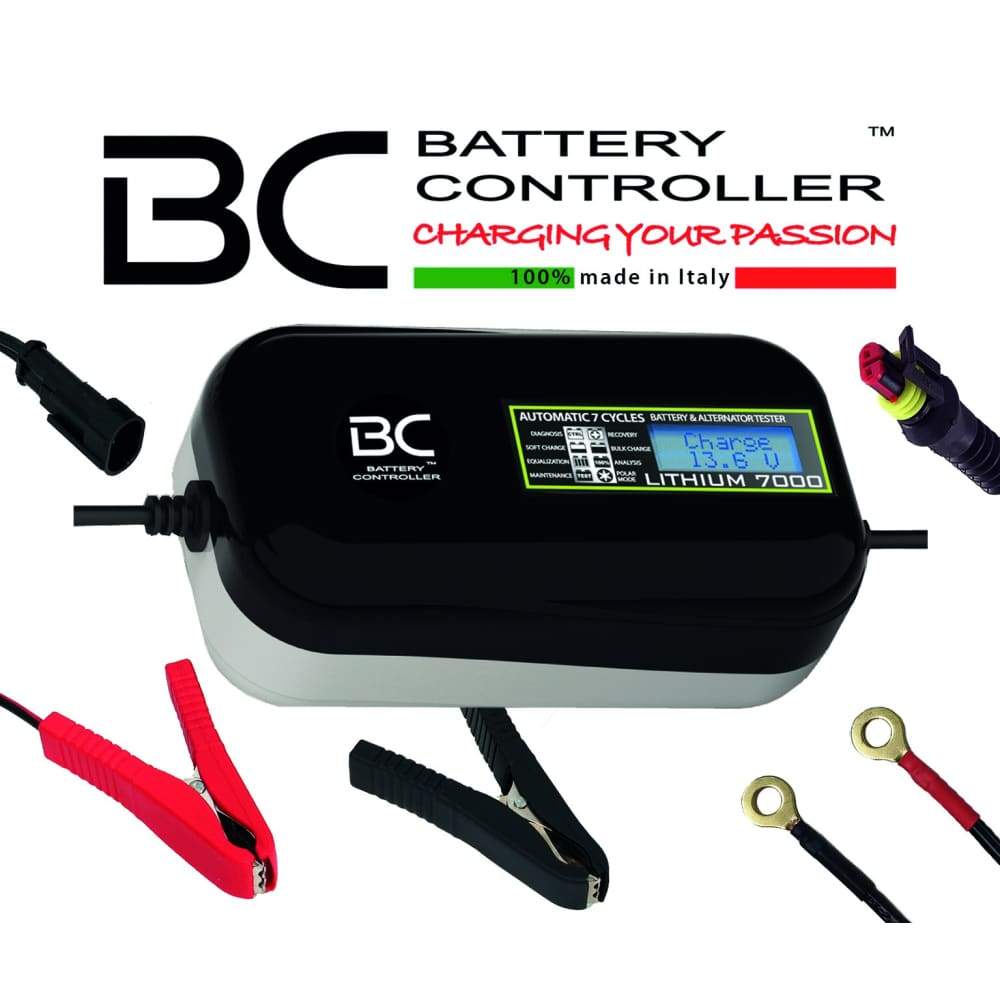

• 1 charger and charge maintainer BC LITHIUM 7000

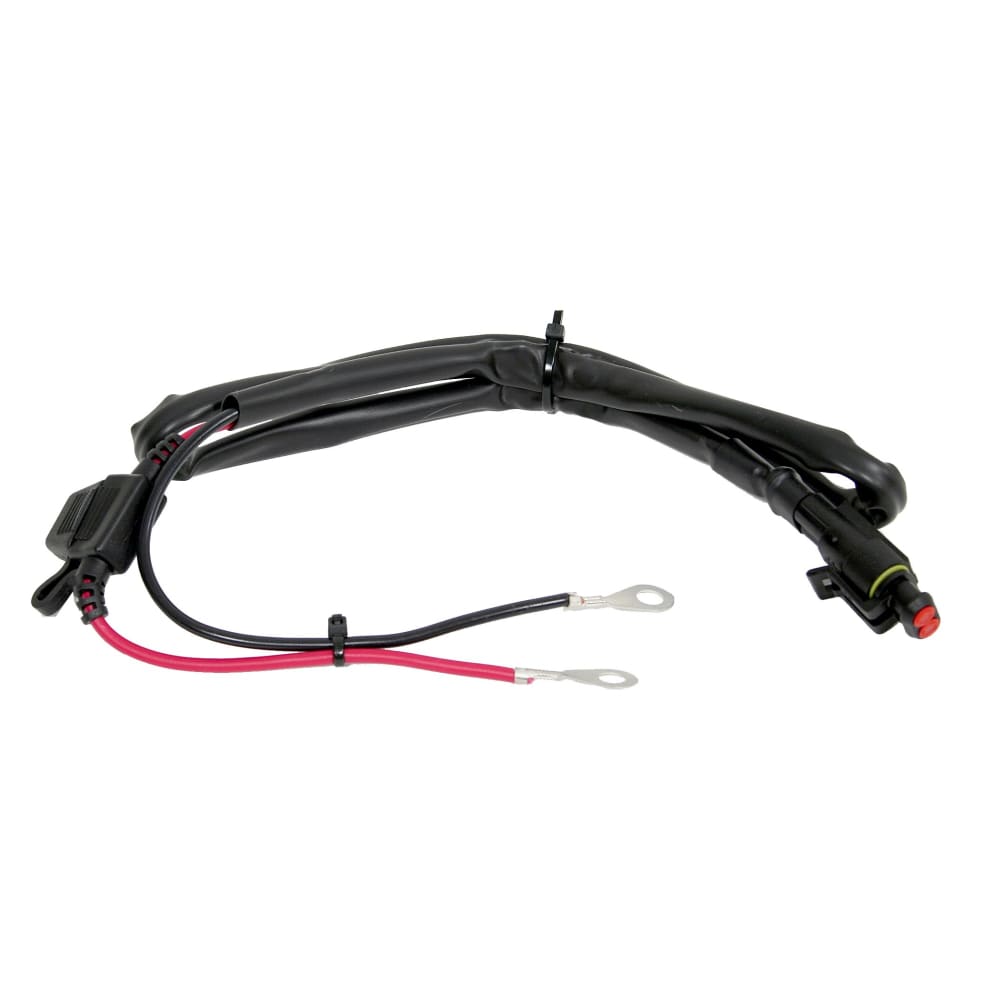

• Cable with eyelets fuse

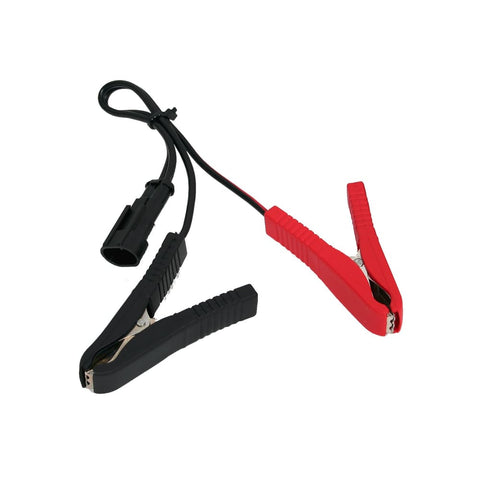

• cable with terminals
• Complete instructions strong> p>

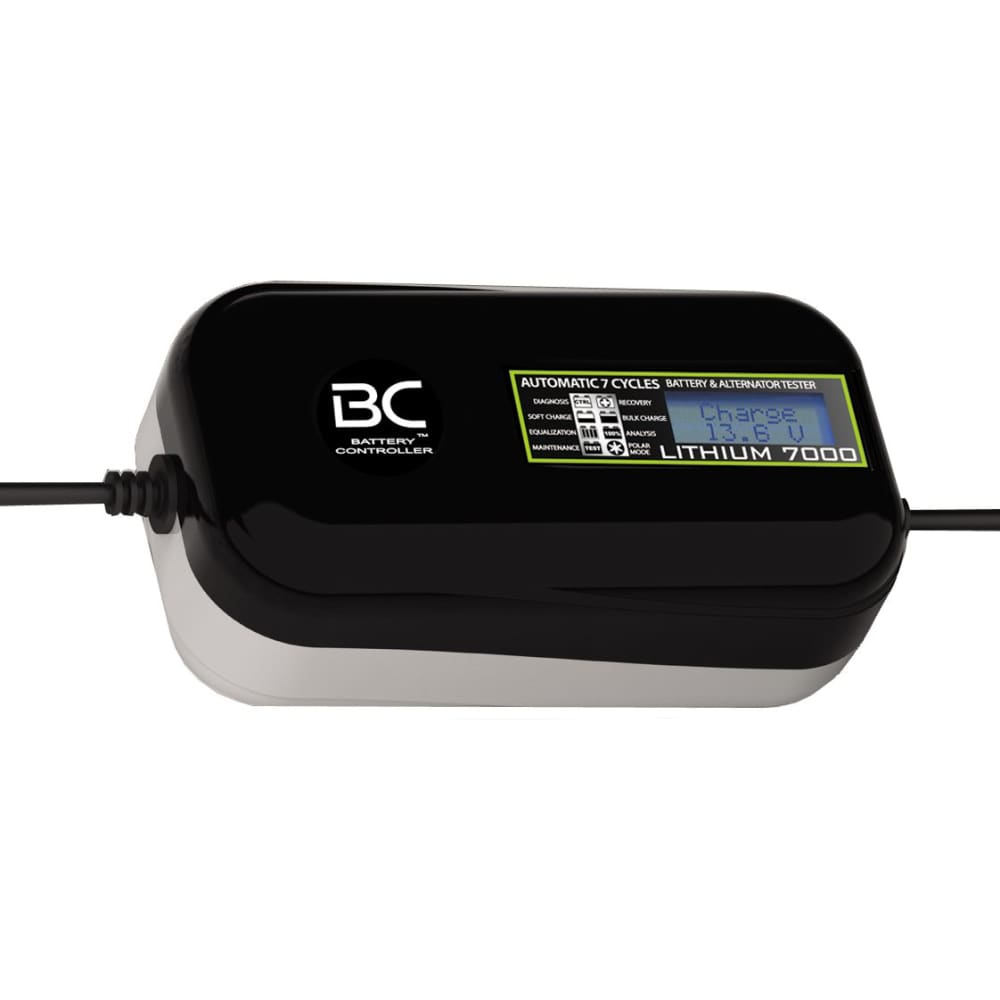

BC 7000 is a battery charger and maintainer intelligent charging with its maximum 7 Amp charge rate, it is designed for a perfect and complete maintenance of all starter batteries 12 V lithium latest generation (lithium ion & amp; LiFePO4) from 1.2 Ah to 100 Ah.
BC battery Controller products recharge the battery much more quickly than conventional battery charger. < br> the BC LITHIUM 7000 model serves as a battery tester function and alternator, is able to heal sulfated batteries, recovered batteries 1.25V (the lowest level on the market) and is also designed for use on vehicles equipped with start / stop "micro-hybrid."
Thanks to its spark-proof system systems (anti-spark) and its protections against overloads, polarity inversion and short circuits BC LITHIUM 7000 ensures a high level of protection is st ato tested on all brands of motorcycles and scooters guaranteeing the absolute compatibility with the electronic each bike / scooter plant.
Also equipped in its interior with an advanced microprocessor the product is able to ensure high efficiency in the charging of the battery and to minimize the energy consumption.
chargers and maintainers of charge of BC battery Controller range being fully automated can be left connected to the battery 24 hours a day / 7 days out of 7 for months, even for years completely safe. p>
Inside the package are present pliers comfortable and practical mounting eyelets to leave connected to the vehicle.
also with an intuitive LCD display where it is possible to see in real-time every 10 seconds on the battery voltage information on the battery charge is also guaranteed a perfect night vision thanks to its backlighting!
the product is well recognized guarantee of three years and premium assistance at the factory, given the very few cases managed.
CHARGE ALGORITHM - CHARGING strong PROGRAM>
The charger is equipped by an internal microprocessor which verifies in real time status of the battery and executes autonomously 8 charging cycles. < br> • Phase 1 - Initialization: verify that the battery is in optimal condition to be recharged / recovered assicuradosi that there are no short circuits between one or more cells of the battery.
Thanks to an integrated sensor which measures the temperature of the environment: at low temperatures (& lt; 5 ° C) the charging current is limited, it automatically activates the secure POLAR MODE charge mode.
• Step 2 - recovery: if the battery is in a discharged extreme condition (as low as 1.25V), the test device to perform a recovery in order to bring it to a higher voltage, compatible with the next step.
• step 3 - Soft Charge: if the battery is very low, the device provides a light pulse current to allow the battery to overcome the critical stage.
• step 4 - Charge: the battery during this phase can recover up to ' 85-90% of its capacity, thanks to the charger ability to deliver full current.
• Step 5 - battery Analysis: the device stops for a few tens of minutes the power supply and check that the battery is capable of keep the receipt charge during the precedent cycles.
This step is repeated periodically at regular intervals.
• Step 6 - Retention: thanks to a specially designed electronic circuit, the device keeps the battery during periods of inactivity, without overheating, overcharging and water loss / electrolyte.
• step 7 - Equalization: this step is carried out every 30 days in order to balance the battery cells, so avoiding electrolyte stratification.
BC lITHIUM 7000 - FEATURES strong>
• charging algorithm 8 cycles suitable for all types of batteries 12 V lithium is lithium-ion battery is LiFePO4, from 1.2 Ah to 100 Ah.
• backlit LCD display for a perfect night vision (also in the distance), which indicates: the charging cycle executed (Carica, Maintenance ...), the battery voltage (internal digital voltmeter) and any malfunction (polarity inversion, short circuit, battery not coll Egata ...).
• Real-time monitoring of the parameters of the battery during all charging cycles.
• battery overcharge protection: is activated when the internal microprocessor detects a voltage exceeding a predetermined value; no risk of bubble formation for all batteries on the market.
Safety strong>
1. Protection against inversion of battery terminals.
2. short circuit protection ( also permanently).
3. Protection against overheating: the output current is limited automatically in case of excessive heating of the device. p>
Input voltage: 220 ÷ 240V AC, 50-60Hz
Load Voltage: 14.2V - nom. 12V
Load Current: 7 A max
Operating temperature: -20 ° C - + 50 ° C
Dimensions: 160 x 85 x 60 mm p>
